Micro Back Surgery 980nm Diode Laser For Lumbar Decompression Surgery
Percutaneous laser disc decompression (PLDD) is a procedure that is often used to treat patients suffering from severe herniated discs (bulging disc in the spine). PLDD relieves (decompresses) pressure inside the disc and reduces the bulge. It can provide significant pain relief in the lower back and the legs.
To perform this procedure, a neurosurgeon must pass a side-firing laser probe through specific regions of the cervical disc or lumbar area under X-ray control. The laser is then used to vaporize excess disc material and reduce the resulting inflammation in the disc.
Stable and Portable Design
- Portable design, only 2.1Kg
- Perfect heat management, no overheating
- LCD panel, high resolution touch screen
- Flexible power: direct power, UPS power...
Powerful Treatment Features - Preset professional treatment protocols - Optimal wavelengths: 980nm
- Easy software interface with clear guidance
- Easy software update via TF card...
PLDD laser system is specially designed for PLDD mini-invasive surgery, providing a full set of high quality standard and optional accessories, such as puncture needle, Y-valve, optical fiber, safety goggles, footswitch, fiber cutter, carry case, cart and etc.
The sterile kit include a 400 micron bare fiber with jacket protection, 2 sizes of needles, 20G and 18G for your choice of entry, and a Y Connector allowing fiber entry and suction. The connector and needles are individually packed to enable maximum flexibility in treatment.
Berylas 980nm PLDD laser systems are specially designed for the PLDD procedures. The 980nm wavelength offers equal absorption by blood and water, enabling efficient and precise tissue ablation and coagulation as multi-purpose surgical tool.

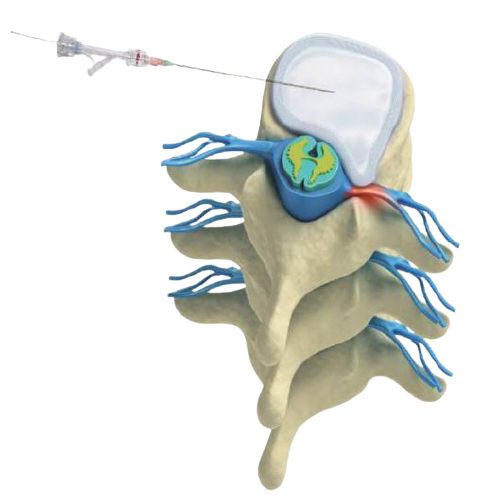

The PLDD treatment is performed on an outpatient basis using only local anesthesia. During the procedure, a thin needle is inserted into the herniated disc under x-ray guidance. An optical fiber is inserted through the needle and laser energy is sent through the fiber, vaporizing a tiny portion of the disc nucleus. This creates a partial vacuum which draws the herniation away from the nerve root, thereby relieving the pain. The effect usually is immediate.
Cervical Problems
One or more cervical disc herniations
Neck pain, shoulder pain, bilateral numbness, dizziness and other symptoms.
Lumbar Problems Restrictive disc herniation on CT or MRI
No intervertebral disc calcification, free, prolapse
Straight leg elevation test positive
Six weeks of conservative treatment is inva
Specifications
| Laser Type | GaAIAs Diode Laser |
| Wavelength | 980nm |
| Peak Power | 15w |
| Operation Mode | CW, Single / Repeat Pulse |
| Pulse Duration | 10us-3s |
| Repetition Rate | 0.2Hz-50KHz |
| Pilot Beam | Red Diode Laser of 650nm, Power<5mw |
| Control Mode | High resolution 7inch Touch screen (600*1024px) |
| Transmission System | Medical Fibers With SMA905 Connector |
| Dimensions | 160(W)*180(L)*235(H) mm |
| Weight | 2.1KG |
PLDD can treat the fllowing conditions
Herniated discs
Radiculopathy
Sciatica
Spinal stenosis
What are the advantages of Laser Disc Decompression?
PLDD can be an effective and attractive procedure for the right patient. One of its biggest advantages as a first procedure is that if it proves ineffective, open or minimally invasive surgery can still be performed at a later date.
Other advantages include:
No incisions
No scarring
No general anesthesia
Outpatient procedure – no hospital stay required
Short recovery time – average time to return to work was one week
Low reoperation rate
